Service Bus¶
Calls that will illicit this response.¶
Description¶
Returns information held, by the source applications name and Id

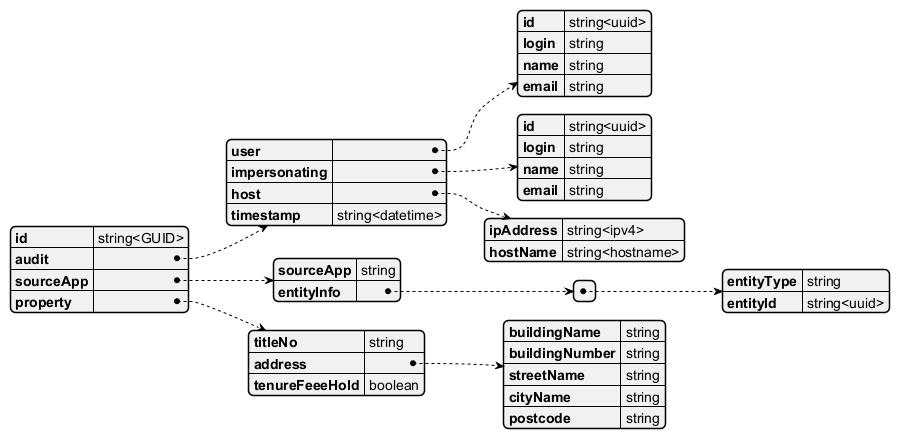

Request¶
Example JSON Object validated against schema¶
{
"id": "fb2e442e-374f-46a5-b4ef-f4b338a8a307",
"audit": {
"user": {
"id": "fb2e442e-374f-46a5-b4ef-f4b338a8a307",
"login": "newportg",
"name": "Gary Newport",
"email": "Gary.Newport@KnightFrank.com"
},
"impersonating": {
"id": "fb2e442e-374f-46a5-b4ef-f4b338a8a30",
"login": "AhmedA",
"name": "Aneela Ahmed",
"email": "Aneela.Ahmed@knightfrank.com"
},
"host": {
"ipAddress": "127.0.0.1",
"hostName": "MyLaptop"
},
"timestamp": "2025-01-01 12:05:05"
},
"sourceApp": {
"sourceApp": "hub",
"entityInfo": [
{
"entityType": "Activity",
"entityId": "fb2e442e-374f-46a5-b4ef-f4b338a8a307"
}
]
},
"property": {
"titleNo": "string",
"address": {
"buildingNumber": "99",
"buildingName": "A House",
"streetName": "Street",
"cityName": "City",
"postcode": "AB12 3CD"
}
}
}
Request Schema Validation¶
{
"$schema": "http://json-schema.org/draft/2020-12/schema",
"$id": "https://knightfrank.com/lrinfo/findbyaddress.schema.json",
"title": "Get Land Registry Title by Address",
"description": "Request to the internal LR system",
"type": "object",
"required": [
"audit",
"id",
"property",
"sourceApp"
],
"properties": {
"id": {
"type": "string",
"format": "uuid"
},
"audit": {
"type": "object",
"required": [
"host",
"impersonating",
"timestamp",
"user"
],
"properties": {
"user": {
"type": "object",
"required": [
"email",
"id",
"login",
"name"
],
"properties": {
"id": {
"type": "string",
"format": "uuid"
},
"login": {
"type": "string"
},
"name": {
"type": "string"
},
"email": {
"type": "string",
"format": "email"
}
}
},
"impersonating": {
"type": "object",
"required": [
"email",
"id",
"login",
"name"
],
"properties": {
"id": {
"type": "string",
"format": "uuid"
},
"login": {
"type": "string"
},
"name": {
"type": "string"
},
"email": {
"type": "string",
"format": "email"
}
}
},
"host": {
"type": "object",
"required": [
"hostName",
"ipAddress"
],
"properties": {
"ipAddress": {
"type": "string",
"format": "ipv4"
},
"hostName": {
"type": "string"
}
}
},
"timestamp": {
"type": "string"
}
}
},
"sourceApp": {
"type": "object",
"required": [
"entityInfo",
"sourceApp"
],
"properties": {
"sourceApp": {
"type": "string"
},
"entityInfo": {
"type": "array",
"items": {
"type": "object",
"required": [
"entityId",
"entityType"
],
"properties": {
"entityType": {
"type": "string"
},
"entityId": {
"type": "string"
}
}
}
}
}
},
"property": {
"type": "object",
"oneOf": [
{
"required": [
"titleNo"
]
},
{
"required": [
"address"
]
}
],
"properties": {
"titleNo": {
"type": "string"
},
"address": {
"type": "object",
"required": [
"buildingName",
"buildingNumber",
"cityName",
"postcode",
"streetName"
],
"properties": {
"buildingNumber": {
"type": "string"
},
"buildingName": {
"type": "string"
},
"streetName": {
"type": "string"
},
"cityName": {
"type": "string"
},
"postcode": {
"type": "string"
}
}
}
}
}
}
}

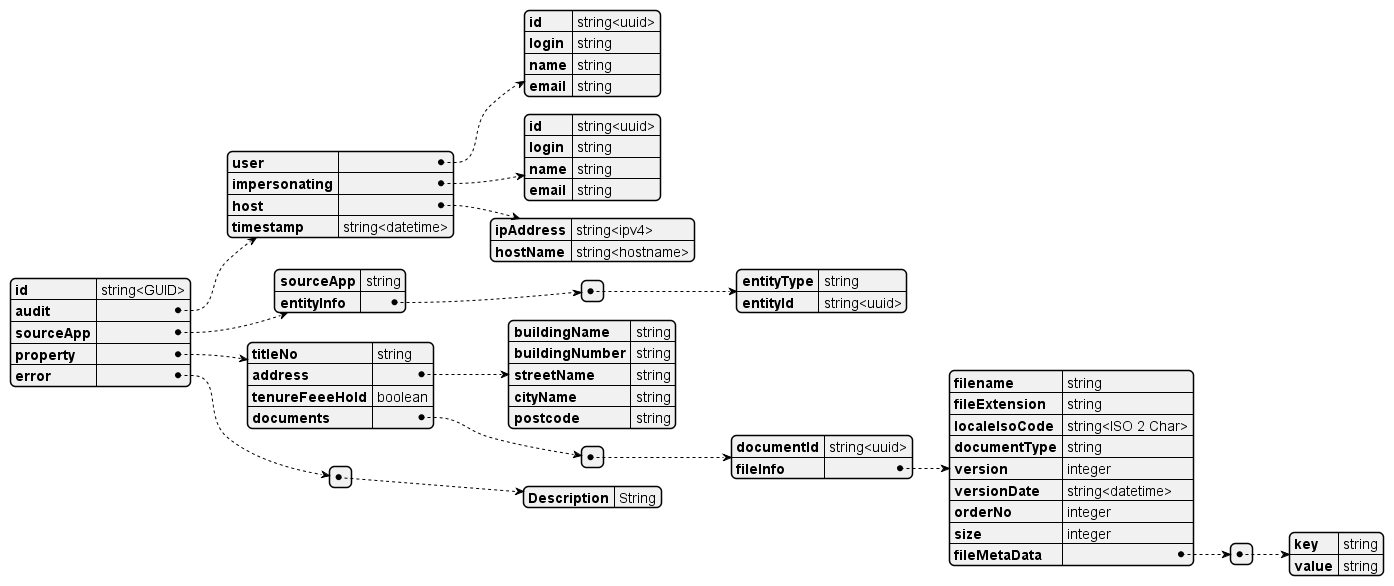

Response¶
Example JSON Object validated against schema¶
{
"id": "fb2e442e-374f-46a5-b4ef-f4b338a8a307",
"audit": {
"user": {
"id": "fb2e442e-374f-46a5-b4ef-f4b338a8a307",
"login": "newportg",
"name": "Gary Newport",
"email": "Gary.Newport@KnightFrank.com"
},
"impersonating": {
"id": "fb2e442e-374f-46a5-b4ef-f4b338a8a30",
"login": "AhmedA",
"name": "Aneela Ahmed",
"email": "Aneela.Ahmed@knightfrank.com"
},
"host": {
"ipAddress": "127.0.0.1",
"hostName": "MyLaptop"
},
"timestamp": "2025-01-01 12:05:05"
},
"sourceApp": {
"sourceApp": "hub",
"entityInfo": [
{
"entityType": "Activity",
"entityId": "fb2e442e-374f-46a5-b4ef-f4b338a8a307"
}
]
},
"property": {
"titleNo": "string",
"address": {
"buildingNumber": "99",
"buildingName": "A House",
"streetName": "Street",
"cityName": "City",
"postcode": "AB12 3CD"
},
"documents": [
{
"documentId": "fb2e442e-374f-46a5-b4ef-f4b338a8a307",
"fileInfo": {
"filename": "Deed",
"fileExtension": "png",
"localeIsoCode": "UK",
"documentType": "Land Registry Deed",
"version": 1,
"versionDate": "05-09-2025",
"orderNo": 0,
"size": 100,
"fileMetaData": [
{
"key": "key",
"value": "Value"
}
]
}
}
]
},
"error": [
{
"Description": "String"
}
]
}
Response Schema Validation¶
{
"$schema": "https://json-schema.org/draft/2020-12/schema",
"type": "object",
"required": [
"audit",
"id",
"property",
"sourceApp"
],
"properties": {
"id": {
"type": "string",
"format": "uuid"
},
"audit": {
"type": "object",
"required": [
"host",
"impersonating",
"timestamp",
"user"
],
"properties": {
"user": {
"type": "object",
"required": [
"email",
"id",
"login",
"name"
],
"properties": {
"id": {
"type": "string",
"format": "uuid"
},
"login": {
"type": "string"
},
"name": {
"type": "string"
},
"email": {
"type": "string",
"format": "email"
}
}
},
"impersonating": {
"type": "object",
"required": [
"email",
"id",
"login",
"name"
],
"properties": {
"id": {
"type": "string",
"format": "uuid"
},
"login": {
"type": "string"
},
"name": {
"type": "string"
},
"email": {
"type": "string",
"format": "email"
}
}
},
"host": {
"type": "object",
"required": [
"hostName",
"ipAddress"
],
"properties": {
"ipAddress": {
"type": "string",
"format": "ipv4"
},
"hostName": {
"type": "string"
}
}
},
"timestamp": {
"type": "string"
}
}
},
"sourceApp": {
"type": "object",
"required": [
"entityInfo",
"sourceApp"
],
"properties": {
"sourceApp": {
"type": "string"
},
"entityInfo": {
"type": "array",
"items": {
"type": "object",
"required": [
"entityId",
"entityType"
],
"properties": {
"entityType": {
"type": "string"
},
"entityId": {
"type": "string"
}
}
}
}
}
},
"property": {
"type": "object",
"required": [
"address",
"documents",
"titleNo"
],
"properties": {
"titleNo": {
"type": "string"
},
"address": {
"type": "object",
"required": [
"buildingName",
"buildingNumber",
"cityName",
"postcode",
"streetName"
],
"properties": {
"buildingNumber": {
"type": "string"
},
"buildingName": {
"type": "string"
},
"streetName": {
"type": "string"
},
"cityName": {
"type": "string"
},
"postcode": {
"type": "string"
}
}
},
"documents": {
"type": "array",
"items": {
"type": "object",
"required": [
"documentId",
"fileInfo"
],
"properties": {
"documentId": {
"type": "string"
},
"fileInfo": {
"type": "object",
"required": [
"documentType",
"fileExtension",
"fileMetaData",
"filename",
"localeIsoCode",
"orderNo",
"size",
"version",
"versionDate"
],
"properties": {
"filename": {
"type": "string"
},
"fileExtension": {
"type": "string"
},
"localeIsoCode": {
"type": "string"
},
"documentType": {
"type": "string"
},
"version": {
"type": "integer"
},
"versionDate": {
"type": "string"
},
"orderNo": {
"type": "integer"
},
"size": {
"type": "integer"
},
"fileMetaData": {
"type": "array",
"items": {
"type": "object",
"required": [
"key",
"value"
],
"properties": {
"key": {
"type": "string"
},
"value": {
"type": "string"
}
}
}
}
}
}
}
}
}
}
},
"error": {
"type": "array",
"items": {
"type": "object",
"required": [
"Description"
],
"properties": {
"Description": {
"type": "string"
}
}
}
}
}
}
